Project Description

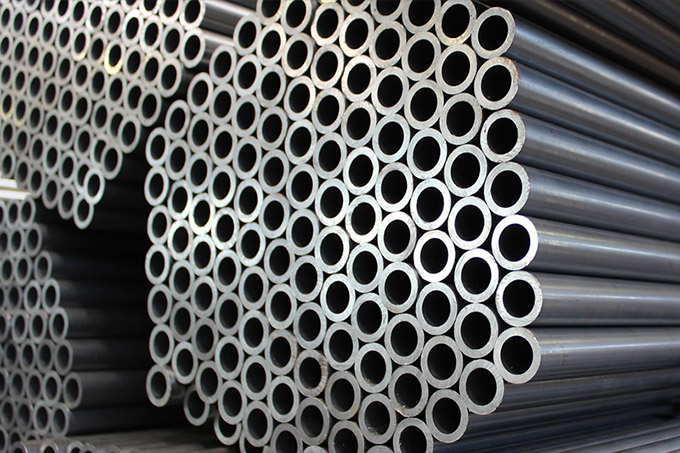

DIN 2391 seamless precision steel tube, St35 and St52, bright annealed in straight lengths
St35 · St45 · St52DIN grades
h9 / h10 / h11OD tolerance
BK – NBKfive conditions
0.5 mm/mstraightness
EN 10305-1current equivalent
EN 10204 3.1mill certificate
MOQ 500 kg per size
Lead time 20–30 days
Bright annealed available
Quote within 24 hours
Cut length from 300 mm
Drawing still says DIN 2391? Send OD, ID or wall, condition and quantity — quotation back within 24 hours against the EN equivalent.
Get a quote

DIN 2391 is the German precision tube standard that half the world’s hydraulic drawings still reference, even though it was withdrawn and replaced by EN 10305-1 more than twenty years ago. The grades — St35, St45, St52 — correspond to E235, E235 and E355 in the current standard, and the condition codes BK, BKW, BKS, GBK and NBK correspond to +C, +LC, +SR, +A and +N. Nothing about the tube has changed; only the label. This page is written for the buyer who has an old drawing in front of them: what each designation means, what tolerance class to expect, and what to order today so the certificate matches the drawing without a substitution debate.

The old designations against the current ones

Table 1 — DIN 2391 to EN 10305-1

DIN 2391 grade EN 10305-1 grade Steel number Tensile, normalized Yield, normalized
St35 E235 1.0308 340 – 480 MPa 235 MPa
St45 E235 (higher carbon end) or E275 where specified 1.0308 340 – 480 MPa 235 MPa
St52 E355 1.0580 490 – 630 MPa 355 MPa

St45 has no exact successor — the EN series jumped from E235 to E355, so old St45 drawings are usually satisfied by E235 with a note, or by E355 where the strength was genuinely needed. Check which one the design assumed before substituting.

Table 2 — Condition codes

DIN 2391 EN 10305-1 Last operation Effect on the part
BK +C Final cold draw, no heat treatment Hardest and strongest; will move when machined
BKW +LC Heat treat then light finishing draw Some forming capacity retained
BKS +SR Stress relief after the final draw Stable when machined on one side
GBK +A Annealed in controlled atmosphere Soft, free machining
NBK +N Normalized in controlled atmosphere Uniform structure, predictable hardening

Tolerance classes

Table 3 — Outside diameter tolerance to ISO 286 (all minus, zero above nominal)

Nominal OD h9 h10 h11 Typical order
10 – 18 mm 0 / −43 µm 0 / −70 µm 0 / −110 µm h11 for general machining stock
Over 18 – 30 mm 0 / −52 µm 0 / −84 µm 0 / −130 µm h9 for bearing seats
Over 30 – 50 mm 0 / −62 µm 0 / −100 µm 0 / −160 µm h10, the hydraulic default
Over 50 – 80 mm 0 / −74 µm 0 / −120 µm 0 / −190 µm h9 only by agreement above 60 mm
Over 80 – 120 mm 0 / −87 µm 0 / −140 µm 0 / −220 µm h11 for barrel stock before honing

The tolerance class is chosen at order and it drives the price: h11 is a normal drawing pass, h9 needs a sizing pass and a straighter tube. Specifying h9 “to be safe” on a part that only needs h11 is a straight cost increase with no benefit.

Other tolerances

Table 4 — Commercial values we hold

Parameter Standard Tighter by agreement
Wall thickness ±10% of nominal ±7.5%
Inside diameter H10 where drawn over a mandrel H9 or H8
Straightness 0.5 mm per metre 0.3 mm/m after stress relief
Ovality Within the OD band Half the OD tolerance
Length Cut length +20/−0 mm ±2 mm on short lengths
Surface, bright annealed Ra 0.8 – 1.6 µm Ra 0.4 µm after skiving or honing

Where DIN 2391 tube goes

Hydraulic cylinder barrels

St52 / E355 in BKS (+SR), bored and honed after delivery. The stress relief is what keeps the bore round.

Pneumatic cylinders

St35 / E235 with a tight ID and Ra 0.8 µm after skiving, where pressure is low and finish drives the seal life.

Automotive components

Shock absorber bodies, steering columns and axle tubes, often in BKW (+LC) because they are formed after delivery.

Machine building

Shaft sleeves, bushes and rollers turned from GBK (+A) stock, where the drawn bore saves a boring operation.

Bearing spacers

BK (+C) with an h9 OD, cut to width and used without further machining.

Furniture and frames

St35 in NBK (+N) for bending and welding, where formability matters more than strength.

Frequently asked questions

Is DIN 2391 still valid?

It was withdrawn and replaced by EN 10305-1. Drawings that cite it are still common and the tube is still made to those dimensions, but a certificate issued today will reference EN 10305-1 unless you specifically ask for the old designation.

What is St35 in the current standard?

E235, steel number 1.0308. St52 is E355, 1.0580. St45 sits awkwardly between them and is normally resolved at quotation stage.

What does BKS mean?

Cold drawn and stress relieved, the equivalent of +SR. It is the condition to specify for a cylinder barrel that will be machined on one side, because it prevents the tube bending as metal is removed.

Which tolerance class should I specify?

Only as tight as the part needs. h11 for general machining stock, h10 for a hydraulic barrel, h9 for a bearing seat or a bore that will not be touched. Every step tighter costs money at the drawing stage.

Can you supply the ID tolerance as well as the OD?

Yes where the tube is drawn over a mandrel. State ID and OD, or ID and wall — not all three, because the drawing pass fixes two and the third follows.

What is the difference between this and DIN 2391-2?

Part 1 covered the dimensions and tolerances, part 2 the specific requirements per grade. Both were replaced by the single EN 10305-1, which now carries dimensions, tolerances, grades and conditions together.

Is bright annealed available?

Yes — GBK (+A) and NBK (+N) are annealed in a controlled atmosphere and arrive bright. Pickled stock is cheaper and has a matt grey surface.

What is the minimum order and lead time?

500 kg per size. Lead time is 20–30 days; h9 tolerance on large diameter and bright annealed material run towards the longer end.

Send the old drawing as it is. Do not retype it — send it with the DIN designations and we will map it to the EN equivalent at quotation stage, so the certificate and the drawing agree before the order is placed.
