Project Description

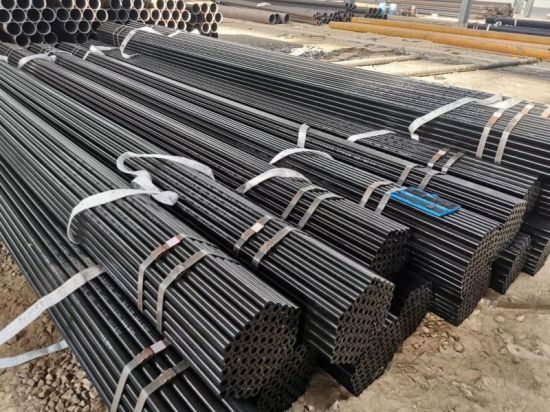

  • DIN 17175 ST45.8 1.0405 Heat Resistant Seamless Steel Pipe

Commitment to You

We are committed to integrate steel resources in china and serve the global steel market. We have 15+ years of experience in steel researching, production, managing and sales.

Our ability to purchase materials directly from leading mills will give you the competitive edge. Any Questions send to info@fushunsteeltube.com

DIN 17175 ST35.8 1.0305 Heat Resistant Seamless Steel Pipe

What is din 17175 steel tube?

DIN 17175 alloy steel pipes are of heat resistant pipe and used for high pressure and up to 600℃, application fields include: construction of boilers, pipe-lines, pressure vessels and equipment.

Where din 17175 pipe use to?

DIN 17175 Seamless steel boiler tubes is specially used as heating surface tubes in low and medium pressure boilers tubes(The working pressure is not more than 5.88 Mpa and the significant temperature is below 450 degree celsius).

Standard Documents:

DIN 17175 seamless tubes of heat resistant steels

Fushun produce din 17175 pipe

We are one of the large manufacturers for high quality DIN 17175 Tubed. DIN 17175 seamless boiler tubes is widely used in petroleum, boiler industry, heat preservation, chemical fiber, chemical industry, medicine, machinery, paper, mechanical equipment, refrigeration, food, electricity, water, aerospace, construction, aviation, marine, shipbuilding, environmental protection and boiler heat exchangers tubes. DIN 17175 Seamless boiler tubes in same way used for producing storage tanks of heat-resistant steels used in tool making and boiler making industries and for constructing pressure reservoirs.

17175 Tubes Size:

The Outer dimension of DIN 17175 tubes is from 6.0 mm to 800 mm & Wall thickness is ranges from 1 mm to 120 mm. We supply different grades of seamless boiler tubes, such as DIN 17175 St35.8, DIN 17175 St45.8, DIN 17175 15Mo3, DIN 17175 13CrMo44, DIN 17175 10CrMo910.

Fushun Tubes Advantages:

  1. More Than 3 Decades of Experience in Manufacture. Stock& Supply of DIN 17175 Seamless Steel Tubes
  2. Best Prices For DIN 17175 Seamless Steel Tubes Supplied Worldwide with Shortest Delivery Time
  3. Exporting DIN 17175 Seamless Steel Tubes is Our Specialty
  4. We Can Handle the Logistics for You-We can offer Exworks, FOB, CFR CIF Delivery to Any Port
  5. Documents We Provide Include -Certificate of Origin.Invoice & Pl Attested by Chamber of Commerce. Test Certificates as per EN 10204 3.1, Other Testing Reports, as may be Required by Our Customers.
  6. Complete Traceablity for DIN 17175 Seamless Steel Tubes-There will be Complete Marking on Steel Pipes&Tubes, and the Details can be Co-related to the Test Certificates.

Fushuns Tube Data:

Condition on Delivery: Cold-finished/hard(Cold-finished as-drawn), Cold-finished/soft lighty cold-worked). Annealed. Normalized. Hot Rolled

Testings: Tensile Test, Flattening Test, Measurement of Surface Roughness, Dimensional Check. Surface Inspection.Non-Destructive Test

Delivery: 15-60 Days

Test Certificate: As per EN 10204 3.1

Marking: As per ASME, ASTMEN Standards

Ends : Plain Ends or Beveled Ends

Packaging: Bundles(hexagonal). Wooden Boxes, Crates(steel/wooden), Special Crates for U-Bend Tubes

DIN 17175 Tube Chemical Composition:

Grade C Si Mn P S
St35.8 0.17Max 0.10~0.35 0.40~0.80 0.040Max 0.040Max

DIN 17175 Tube Mechanical properties:

Grade Material

Number

MPa or N/mm2
Min Yield Point Tensile Strength
WT: 16mm Max WT: 16- 40mm
St35.8 1.0305 235 225 360~480

DIN 17175 Tube Inspection & Test:

  • Flattening Test—One flattening test shall be made on specimens from each end of one finished tube, not the one used for the flaring test, from each lot
  • Flaring Test—One flaring test shall be made on specimens from each end of one finished tube, not the one used for the flattening test, from each lot
  • Hydrostatic or Nondestructive Electric Test—Each tube shall be subjected to the nondestructive electric test or the hydrostatic test. The type of test to be used shall be at the option of the manufacturer, unless otherwise specified in the purchase order.

DIN 17175 Tube Packing and Marking

Packed in bundles or ply wooden box wrapped in plastic, and suitably protected for sea-worthily delivery or as requested.

Marking prescribed in DIN 17175 Specification, the marking shall include whether the tube is hot-finished or cold-finished and including not limited: Standard, graded, size, heat no. lot no

We produce a large and variety of inventory of DIN 17175 Alloy and Stainless tubing from industry leading and widely accepted manufacturers which meets or exceed the precise technical requirements.

Experienced 15+ Years

Our ability to purchase materials directly from leading mills at the best possible price will give you the competitive edge. This coupled with a skilled workforce dedicated to embracing the demands of the markets.

We Can Supply Follows Products with High Quality:

  1. Cold Rolled Steel Tube
  2. Cold Drawn Steel Tube
  3. Hollow Bar
  4. Honed Tube
  5. Plated Tube
  6. Plated Bar
  7. Boiler Tube

All Products According Quality Standard Strictly:

  1. ASTM: ASTM A519, ASTM A513.
  2. JIS:JIS G3441, JIS G3445, JIS G3466, JIS G3459.
  3. DIN: DIN1626, DIN1629, DIN2391, DIN2393, DIN2448, DIN2458.
  4. EN: EN10305.
  5. BS: BS6323.

Wide Range of Pipes to Fit Your Industry:

  1. OD from 5mm to 820mm.
  2. Wall Thickness from 0.1 to 100mm.
  3. Length up to 50mtr per pc.
