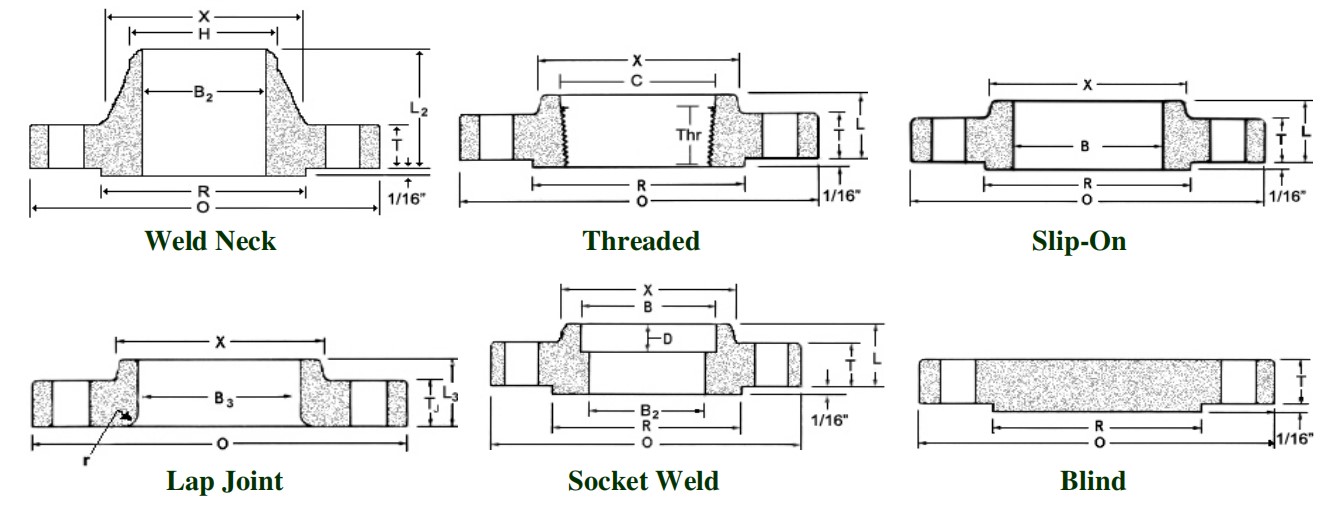

ANSI B16.5 Class 400 Forged Flanges

Nom. Pipe Size O T TJ R X #/Dia of Holesa Bolt Circle Dia B B2b B3 H L L2 L3c r D Thr
½ 3.75 0.56 1.38 1.50 4-0.63 2.62 0.88 To be specified by Purchaser. 0.90 0.84 0.88 2.06 0.88 0.12 0.93 0.38 0.62
¾ 4.62 0.62 1.69 1.88 4-0.75 3.25 1.09 1.11 1.05 1.00 2.25 1.00 0.12 1.14 0.44 0.62
1 4.88 0.69 2.00 2.12 4-.075 3.50 1.36 1.38 1.32 1.06 2.44 1.06 0.12 1.41 0.50 0.69
1¼ 5.25 0.81 2.50 2.50 4-0.75 3.88 1.70 1.72 1.66 1.12 2.62 1.12 0.19 1.75 0.56 0.81
1½ 6.12 0.88 2.88 2.75 4-0.88 4.50 1.95 1.97 1.90 1.25 2.75 1.25 0.25 1.99 0.62 0.88
2 6.50 1.00 3.62 3.31 8-0.75 5.00 2.44 2.46 2.38 1.44 2.88 1.44 0.31 2.50 0.69 1.12
2½ 7.50 1.12 4.12 3.94 8-0.88 5.88 2.94 2.97 2.88 1.62 3.12 1.62 0.31 3.00 0.75 1.25
3 8.25 1.25 5.00 4.62 8-0.88 6.62 3.57 3.60 3.50 1.81 3.25 1.81 0.38 3.63 0.81 1.38
3½ 9.00 1.38 5.50 5.25 8-1.00 7.25 4.07 4.10 4.00 1.94 3.38 1.94 0.38 4.13 …. 1.56
4 10.00 1.38 6.19 5.75 8-1.00 7.88 4.57 4.60 4.50 2.00 3.50 2.00 0.44 4.63 …. 1.44
5 11.00 1.50 7.31 7.00 8-1.00 9.25 5.66 5.69 5.56 2.12 4.00 2.12 0.44 5.69 …. 1.69
6 12.50 1.62 8.50 8.12 12-1.00 10.62 6.72 6.75 6.63 2.25 4.06 2.25 0.50 6.75 …. 1.81
8 15.00 1.88 10.62 10.25 12-1.12 13.00 8.72 8.75 8.63 2.69 4.62 2.69 0.50 8.75 …. 2.00
10 17.50 2.12 12.75 12.62 16-1.25 15.25 10.88 10.92 10.75 2.88 4.88 4.00 0.50 10.88 …. 2.19
12 20.50 2.25 15.00 14.75 16-1.38 17.75 12.88 12.92 12.75 3.12 5.38 4.25 0.50 12.94 …. 2.38
14 23.00 2.38 16.25 16.75 20-1.38 20.25 14.14 14.18 14.00 3.31 5.88 4.62 0.50 14.19 …. 2.50
16 25.50 2.50 18.50 19.00 20-1.50 22.50 16.16 16.19 16.00 3.69 6.00 5.00 0.50 16.19 …. 2.69
18 28.00 2.62 21.00 21.00 24-1.50 24.75 18.18 18.20 18.00 3.88 6.50 5.38 0.50 18.19 …. 2.75
20 30.50 2.75 23.00 23.12 24-1.62 27.00 20.20 20.25 20.00 4.00 6.62 5.75 0.50 20.19 …. 2.88
22 33.00 2.88 25.25 25.25 24-1.75 29.25 22.22 22.25 22.00 4.25 6.75 6.00 0.50 …. …. —
24 36.00 3.00 27.25 27.62 24-1.88 32.00 24.25 24.25 24.00 4.50 6.88 6.25 0.50 24.19 …. 3.25

Dimensions are in inches.

(a)- Bolt hole diameter 1/8 in. larger than bolt diameter.

(b)- Standard bore dimensions provided. See bolt chart for other wall thicknesses.

(c)- This dimension is commonly associated with “true” lap joints. Industry standard is to make to the slip on length through the hub.

We provides:

  • ANSI/ASME FORGED FLANGES
  • MSS-SP-44 FLANGES/ANSI B 16.47 SERIES A
  • API TYPE 6A – RTJ Face Flanges
  • API-605 FLANGES/ANSI B 16.47 SERIES B
  • G.A. ORIFICE UNIONS – Furnished with or without Hardware.
  • ASME BOILER CODE FLANGES
  • 125 LIGHTWEIGHT FLANGES – For low pressure applications.
  • PLATE FLANGES – From 1/4″ thru 8″ Thick, Including AWWA C-207,and all other special designs.
  • ANSI LONG WELDNECKS & SPECIAL BODY CONNECTORS, HB, E, I1, I2, I3 and CUSTOM
  • STUDDING OUTLETS (pad flanges) – flat bottom or radiused to fit
  • SPECTACLE BLINDS – (line blinds, paddle spacers/blinds)
  • DIN FLANGES
  • JIS FLANGES
  • Special Ring Flanges

Materials:

  • CARBON STEEL – ASTM/ASME SA-105, A-350 LF-2, LF-3, A694, SA-516-70, A36
  • CHROME ALLOYS – A-182-F-1, F-5, F-6, F-9, F-91, F-11, F-12, F-22
  • STAINLESS STEEL – A-182 – F-304, Dual Grade 304/304L, Dual Grade 316/316L, 316, 304H, Dual Grade 304/304H, Dual Grade 316/316H, 316H, 309,
  • 310, 317L, 321, 347, 347H, 904L,
  • Alloy 20, many other H grades
  • ALUMINUM – 3003, 6061, 5083 and other grades upon request.
  • HASTALLOY – B-2, C-276, G, X, C-22
  • INCONEL – 600, 601, 625, 718
  • INCOLLOY – 800, 825, 800H, 800HT
  • MONEL – 400
  • COPPER – 90/10 (C70600), 70/30 (C71500)
  • Duplex – F51/2205, F53/2507
  • TITANIUM – Gr2, Gr12
