Project Description

  • 10305-6 Welded Cold Drawn Steel Tube For Hydraulic And Pneumatic Power Systems

Commitment to You

We are committed to integrate steel resources in china and serve the global steel market. We have 15+ years of experience in steel researching, production, managing and sales.

Our ability to purchase materials directly from leading mills will give you the competitive edge. Any Questions Just Call +86-731-89903933

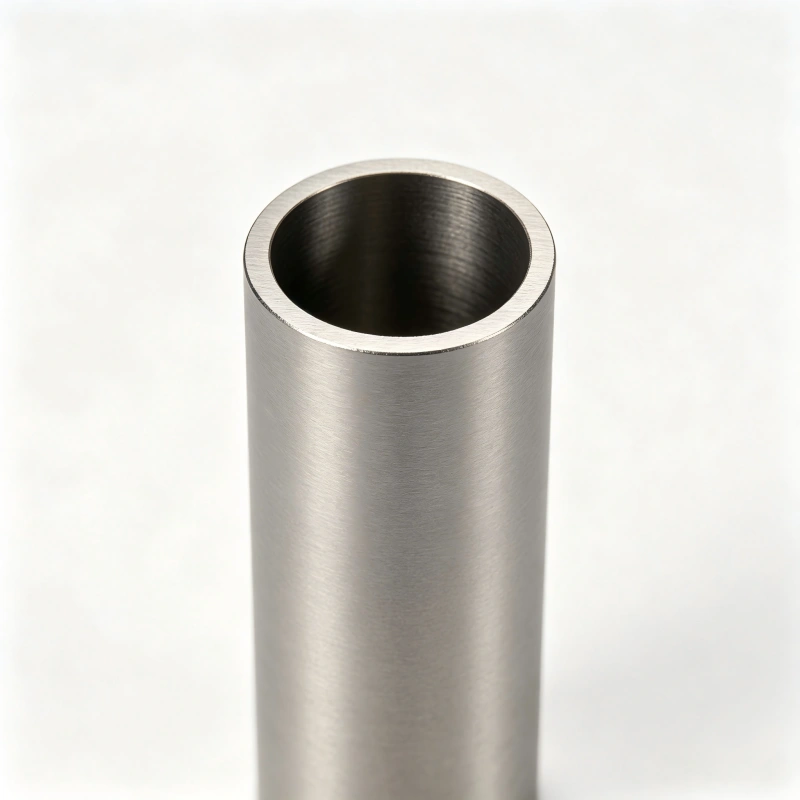

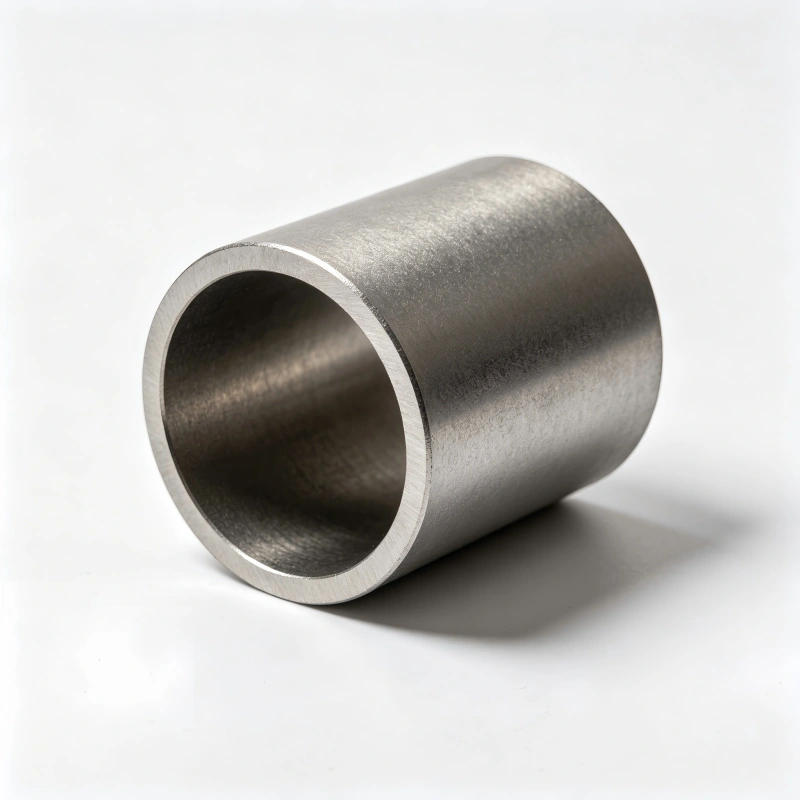

10305-6 Welded Cold Drawn Steel Tube For Hydraulic And Pneumatic Power Systems

10305-6 Welded Steel Tubes manufacture

The tubes shall be manufactured from hot finished welded tubes by cold drawing. Other suitable methods of cold working are permitted. The tubes shall be delivered in the delivery condition +N which means that after the final cold drawing operation the tubes are normalized in a controlled atmosphere.All non-destructive testing (NDT) activities shall be carried out by qualified and competent level 1, 2 and/or 3 personnel authorised to operate.

Benefits Of 10305-6 Welded Steel Tubes

Higher Strength & Hardness Properties

Size Accuracy

Enhanced Appearance

Uniform Micro-structure

Easier To Machine

Superior Finish In Subsequent Manipulations

10305-6 welded Steel Tubes Applications

1.Hydraulic Cylinders

2.Auto and Truck Axles

3.Suspension parts and shock absorbers

4.High Speed Shafts and rollers

5.Bearings and Spacers

6.Roll cages

7.Agricultural components and many other machined tubular parts.

10305-6 welded Steel Tubes Sizes and tolerances

Specified outside diameter with tolerance: 4 (+/-0,08) to 300 (+/-0,35) mm

Specified inside diameter with tolerance: 2 (+/-0,15) to 100 (+/-0,35) mm

Lengths: standard length of 6 m ; exact length ; other length

Straightness: The deviation from straightness of any tube length L shall not exceed 0,0015 L. Deviations from straightness over any one metre length shall not exceed 3 mm.

Standards

BS EN 10305-6 specific requirements for cold drawnwelded Steel Tubes

10305-6 welded Steel Tubes Chemical Component

Steel name Steel number C Si max. Mn max. P S
E155 1.0033 0,11 0,35 0,70 0,025 0,025
E195 1.0034 0,15 0,35 0,70 0,025 0,025
E235 1.0308 0,17 0,35 1,20 0,025 0,025
E275 1.0225 0,21 0,35 1,40 0,025 0,025
E355 1.0580 0,22 0,55 1,60 0,025 0,025

10305-6 welded Steel Tubes Mechanical Property

Steel name Steel number +N
Tensile Yield A
MPa MPa %
E155 1.0033 270 to 410 155 28
E195 1.0034 300 to 440 195 28
E235 1.0308 340 to 480 235 25
E275 1.0225 410 to 550 275 21
E355 1.0580 490 to 630 355 22

10305-6 Welded Steel Tubes Appearance

The internal and external surface finish of the tubes shall be typical of the manufacturing process and the heat treatment, and it shall be such that any surface imperfections such as ridges, dents or shallow grooves requiring dressing can be identified. It shall be permissible to dress, by grinding or machining, surface imperfections provided that, after doing so, the dimensions are within the specified tolerances. All dressed areas shall blend smoothly into the contour of the tube. Surface imperfections which encroach on the specified minimum wall thickness shall be considered defects and tubes containing these shall be deemed not to conform to this part of EN 10305.The tubes shall have smooth outer and inner surfaces with a roughness Ra 4 um, unless a reduced roughness of Ra 2 um is specified for the inner surface is specified.

Preparation of ends

The tubes shall be delivered with square cut ends. The ends shall be free from excessive burrs.

10305-6 Welded Steel Tubes Inspection

Chemical analysis

Tensile test

Flattening test

Drift expanding test

Dimensional inspection

Visual examination

NDT for verification of leak tightness

10305-6 Welded Steel Tubes Protection

The tubes shall be delivered with a temporary protection against corrosion.

The tubes shall be phosphatized before temporary protection.

The tube ends shall be protected with plugs or caps.

10305-6 Welded Steel Tubes Option

1:reduced internal roughness of 2 um

2:lengths other than 6 m

3: alternative marking

4: protection by phosphatization

5:protection by galvanization and chromatization type blue-white

6:protection by galvanization and chromatization type yellow

7:protection by galvanization and chromatization type olive green

8:protection of tube ends

9:special packaging

Other Services

1 Cutting: Small pieces

2 End: Plaint or Beveled or threaded

3 CNC Machine: Produce as your drawing

4 Package: Bare/Nylon/Canvas/Wooden

5 Payment:T/T, L/C, O/A(request credit)

6 Transport:FOB/CFR/CIF/DDU/DDP (train/ship/Air)

Contact Fushun 10305-6 welded Steel Tubes Today

Contact us for more information regarding precision steel tubing specifications and product options, or request a quote for further pricing details today.

Experienced 15+ Years

Our ability to purchase materials directly from leading mills at the best possible price will give you the competitive edge. This coupled with a skilled workforce dedicated to embracing the demands of the markets.

We Can Supply Follows Products with High Quality:

  1. Cold Rolled Steel Tube
  2. Cold Drawn Steel Tube
  3. Hollow Bar
  4. Honed Tube
  5. Plated Tube
  6. Plated Bar
  7. Boiler Tube

All Products According Quality Standard Strictly:

  1. ASTM: ASTM A519, ASTM A513.
  2. JIS:JIS G3441, JIS G3445, JIS G3466, JIS G3459.
  3. DIN: DIN1626, DIN1629, DIN2391, DIN2393, DIN2448, DIN2458.
  4. EN: EN10305.
  5. BS: BS6323.

Wide Range of Pipes to Fit Your Industry:

  1. OD from 5mm to 820mm.
  2. Wall Thickness from 0.1 to 100mm.
  3. Length up to 50mtr per pc.
